Thechnical Summary:

1. Can provide different code based on user requirement: GB/ ASME/CE certificate

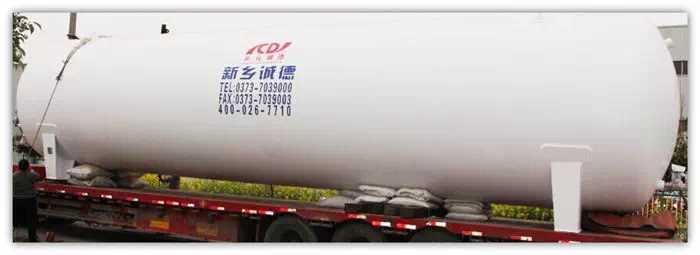

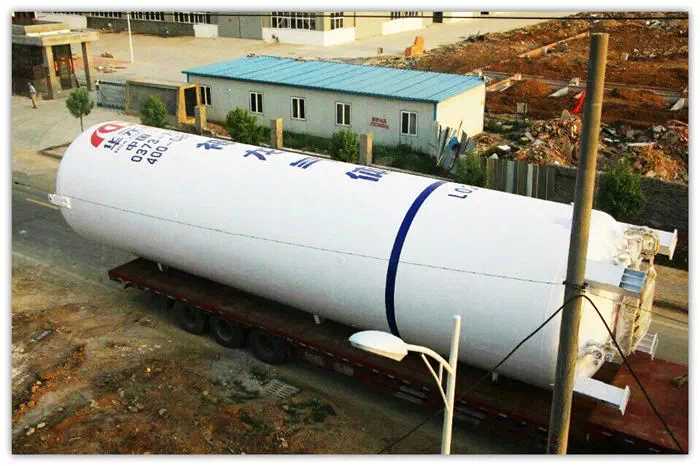

2. Can be horizental or Vertical based on jobsite condition

3. Can special design based on stationary tank or movable tank or skid based on user funtion

4. Vacuum guarantee: 3 years

5. Complet equipment guarantee: one year



Product Description

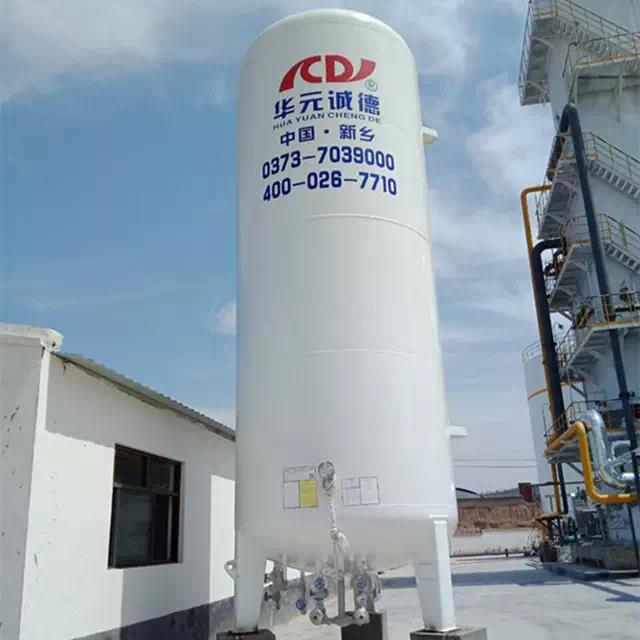

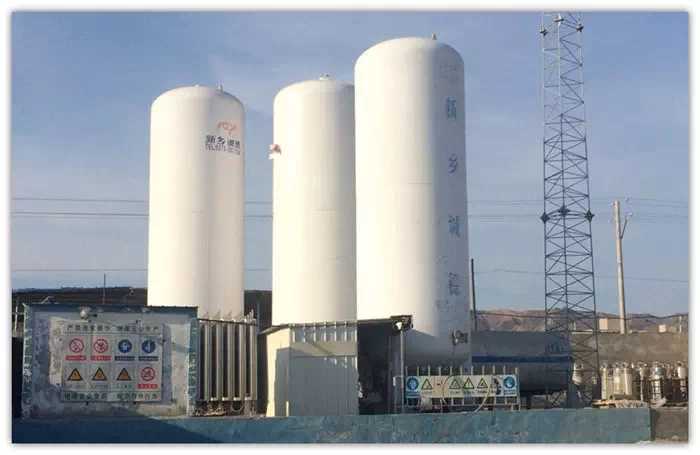

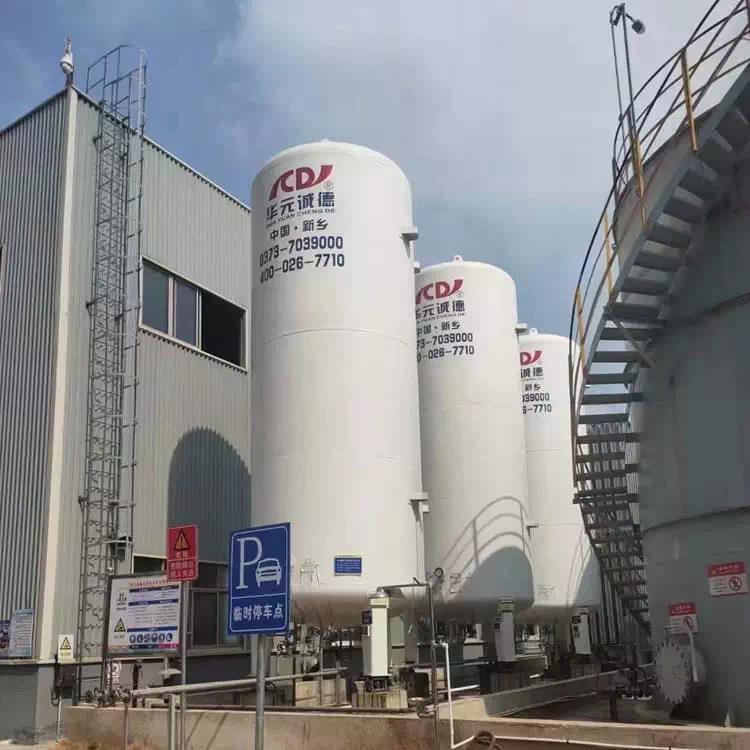

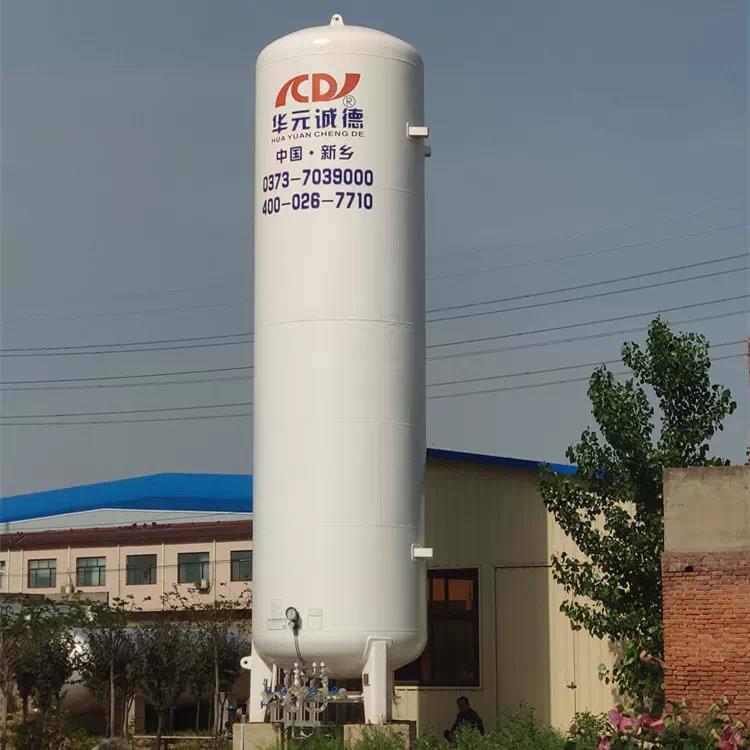

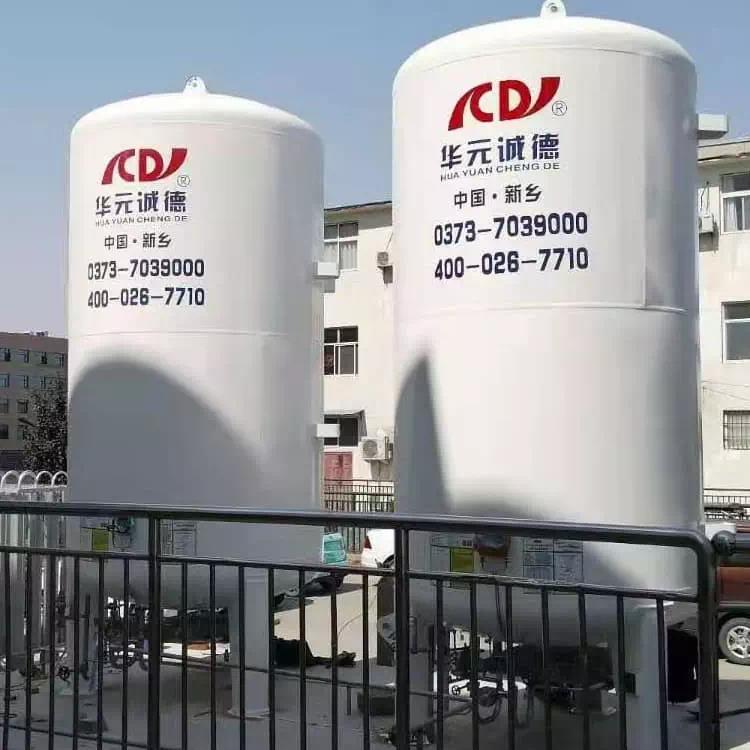

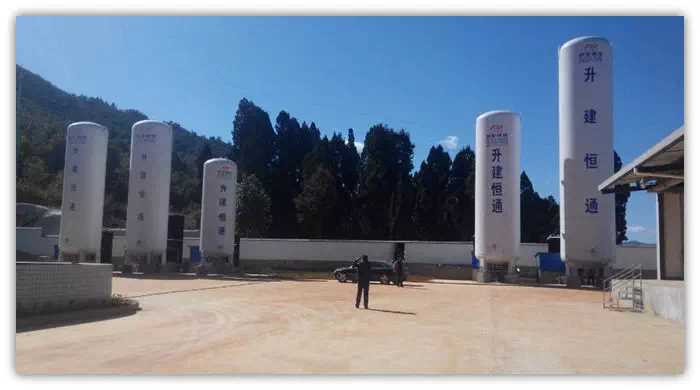

Our  co2 tank are both vertical and horizontal which contain LO2,LN2,LAr,LCO2,taking the type of vacuum powder isolation or high vacuum multi-layer interwining isolation. These tanks have the features of good adiabaticity,compact structure,convenient operation and maintenance,and apply widely to machinery,chemical,metallurgy,medical,food,mine,electronic,war industry and fuel gas,etc.industry. The design and fabrication for all tanks equip high quality appendix and imported paint,through high vacuum mass spectrometer leak test,the index for vacuity,daily vaporization rate,leak rate higher than the requirement of national standards. So they should be an ideal choice of customer.



Vacuum powder insulation cryogenic liquid storage tank is used for storage and supply of cryogenic liquid like liquid oxygen,liquid nitrogen,liquid argon and liquid carton dioxide.It has advantages of area-saving,safe,reliable and convenient maintenance,etc,.and has been widely used in gas,chemical,mechanical,metallurgy,electronics,medical,glass,mining,nuclear power and other industries.The tank supplies cryogenic liquid from bottom,It can be connected with the exterior vaporizer and cryogenic pump.



Main technical parameter:

1	Available max. volume	20m3
2	working pressure	2.16Mpa
3	Design temperature	-40°C
4	Design  pressure	2.27Mpa
5	Total Volume	21.308 m3
6	Effective volume	20 m3
7	Filling Ratio	0.95
8	Inner tank Material	16MnDR
9	Outside tank Material	Q245R
10	Diameter	2500mm
11	Length	8760mm
12	Empty weight	13280kg
13	Suitable	Lco2
14	Insulation method	vacuum powder or polyurethane insulation
15	Medium	Liquid carbon dioxide

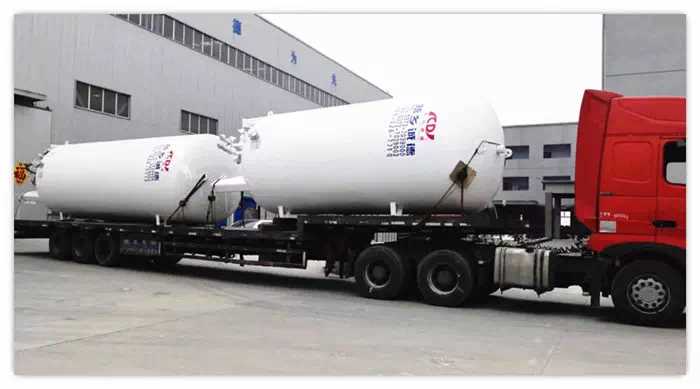

Packaging & Shipping

Packaging Detail: standard export package

Delivery Detail: 60 days after advance payment
