Thechnical Summary:

1. Can provide different code based on user requirement: GB/ ASME/CE certificate

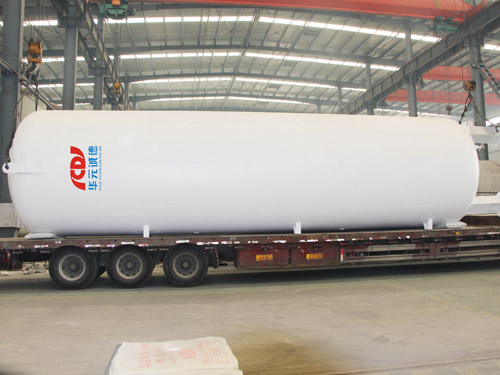

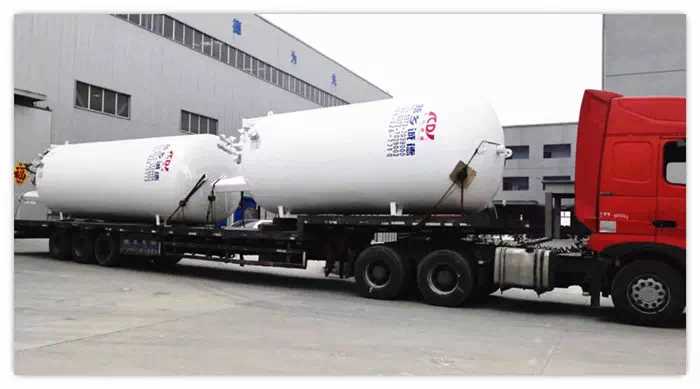

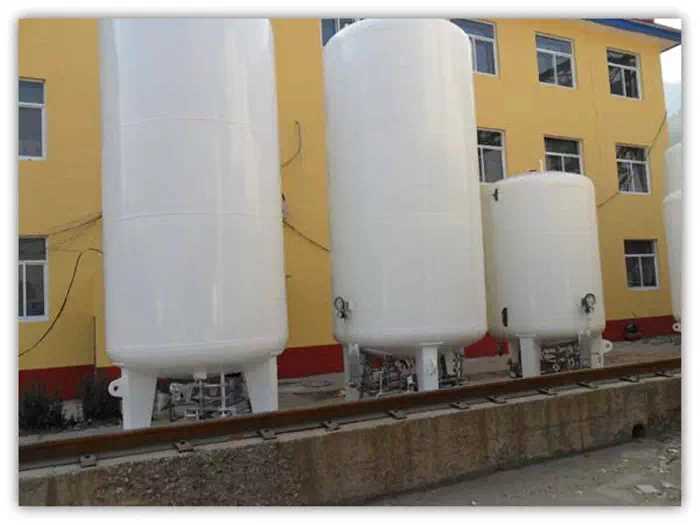

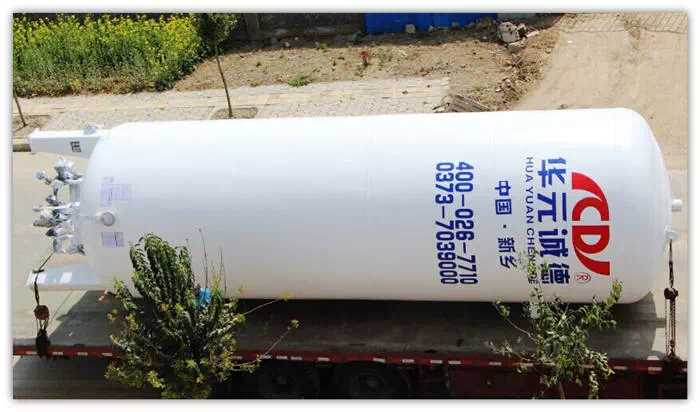

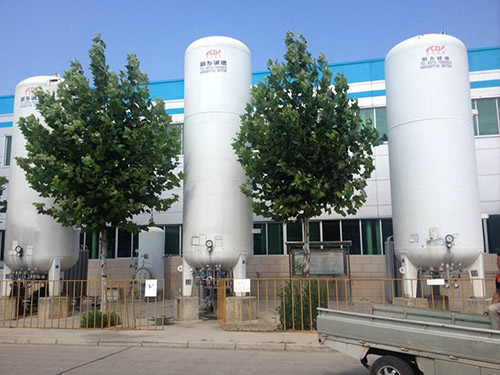

2. Can be horizental or Vertical based on jobsite condition

3. Can special design based on stationary tank or movable tank or skid based on user funtion

4. Vacuum guarantee: 3 years

5. Complet equipment guarantee: one year



Product Description

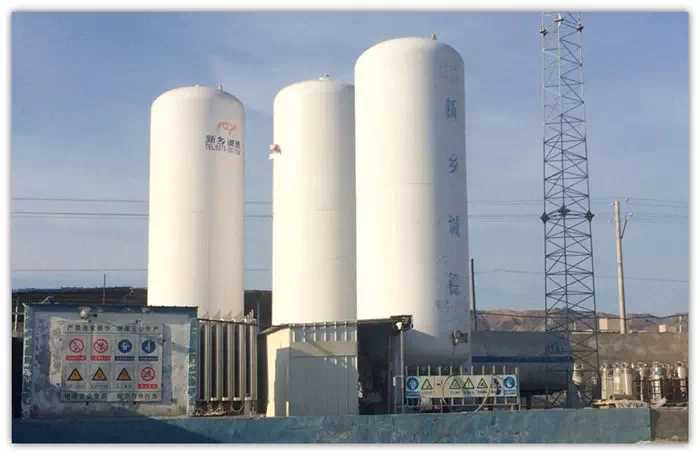

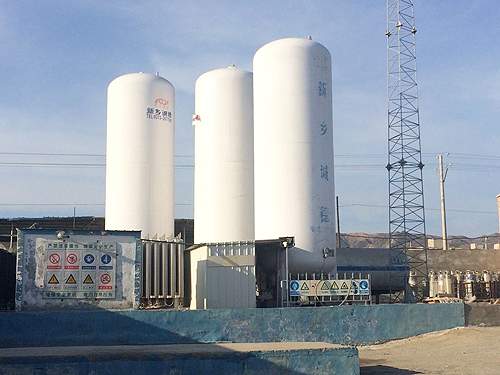

we produce 3 ~ 150m3 of LNG, liquid oxygen, liquid nitrogen, liquid argon, liquid carbon dioxide and other full range vertical and horizontal cryogenic liquid storage tanks, vacuum powder insulation or high vacuum multi-layer winding insulation methods, with thermal insulation good, compact structure, easy operation and maintenance, and can be widely used in LNG vaporization stations, filling stations and liquefaction plants and other industries.

     All tanks in accordance with GB150 and GB18442 design and manufacturing standards, the high vacuum helium leak, the vacuum degree, the daily evaporation rate, the leak and outgassing rate indicators were higher than the national standard requirements. Large storage tanks using advanced nine o'clock structural support and a strap top winding insulation and other measures, the structure has a higher than traditional insulation performance and reliability.

      In addition to the standard series, the company can produce 200 ~ 350m3 LNG large tanks according to your requirement.



Main technical parameter:

1	Available max. volume	35m3
2	working pressure	8bar,16bar
3	Min Design temperature	-196°C
4	Max Design temperature	+50 °C
5	Total Volume	36.8m3
6	Effective volume	35m3
7	Filling Ratio	0.95
8	Inner tank Material	0Cr18Ni9
9	Outside tank Material	Q245R
10	Diameter	2600mm
11	Length	11665mm
12	Empty weight	~19400kg
13	Suitable	LIN, LOX, LAr,LNG
14	Insulation method	vacuum powder or high vacuum multi-layer wrap insulation
15	Medium	liquid argon/ nature gas/ oxygen/nitrogen/ethylene

Packaging Detail: standard export package

Delivery Detail: 60 days after advance payment
